Hydraulic Break Out Unit Oil Drilling Tool
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hydraulic Breaking Unit | For | Pipe Tool Amount / Dismount |
|---|---|---|---|
| Range | 120-300mm | ||
| Highlight | Hydraulic Break Out Unit,Break Out Unit Oil Drilling Tool,Oil Drilling Break Out Unit |
||
Product Description

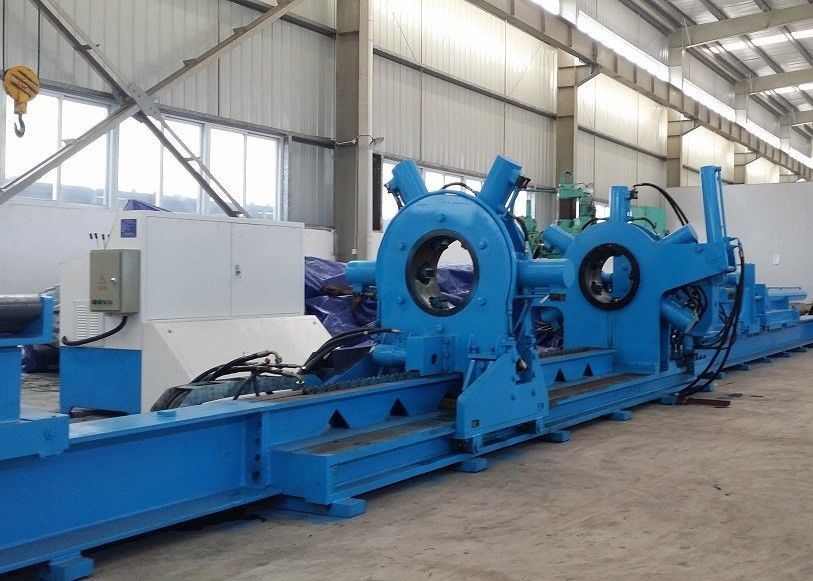

Hydraulic Breaking Unit
Size Range: 120 - 300mm
Hydraulic make-up and break-out unit is a make-up and break-out thread connection machine, its design is reliable and suitable for working in severe condition, it is also suitable for make upor break out collar in tubing and casing factory, oil field downhole pump, downhole tool, tubing, casing and other thread connection fittings during manufacture assembly and repair dismantlement. It has the following features:
1. The outer appearance is simple and compact.
2. Tong head adopted planetary claw clamp mechanism, no need to replace any parts in the application range.
3. The small distance between master tong and backup tong is suitable for ultrashort pup joint and tool.
4. Backup tong equipped with hydraulic walking mechanism, so it could move along with workpiece.
5. The torque control system is optional, the effect would be better if installed torque automatic control system.
