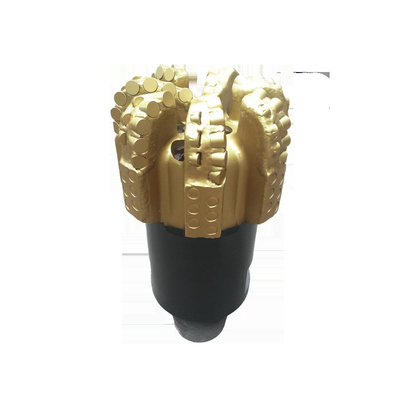

API Standard Matrix Body PDC Drill Bit 95.3mm-660.4mm Horizontal Directional Drilling

  • API Standard Matrix Body PDC Drill Bit 95.3mm-660.4mm Horizontal Directional Drilling
Place of Origin CHINA
Brand Name OHANG TECH
Minimum Order Quantity 1
Packaging Details Sea Freight Packing
Delivery Time 30-50 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Matrix PDC Bit Body Matrix / Steel
For Oil & Gas Well Drilling / Horizontal Directional Drilling
High Light

Matrix Body PDC Drill Bit 95.3mm

,

API matrix body pdc drill bit

,

API Standard 95.3mm Matrix PDC Bit
Leave a Message
Product Description

Matrix PDC Bit



Ohangtech Drill Bit Specification
PDC Bit General Information
Drill Diameter Bit Series Code Blade Qty. Main Cutter Qty. Additional Features Code
3 1/4”-26” S: Steel PDC drill bit
M: Matrix PDC drill bit
D: Directional PDC drill bit
B: Bicenter PDC drill bit
P: Cone PDC bit		 3~12 ∮25 ~25.40mm B: Double row tooth
∮19 ~19.05mm A: Damping tooth
∮16 ~15.875mm R: Back reaming
∮13 ~13.44mm G: Improved gauge
∮10 ~10.00mm Y: Sharp tooth
∮8 ~8.00mm S: Spiral blade

3-1/4" ~ 26" S Series PDC Bit Guide Line
Formation Lithology IADC Type Guide
Extremely soft Clay, mudstone, marl S123 S316,S319,S416,S419,S519
Soft Marl, mudstone, shale S222
S223		 S416,S516,S519
Medium Shale, limestone and sandstone S322
S323
S333		 S513,S516,S613,S616
Hard medium Sandstone, gravel, dolomite, anhydrite S423
S432
S433		 S410,S510,S513,S516,S610
S613,S616,S713,S716,S813

3-1/4" ~ 17-1/2" M Series PDC Bit Guide Line
Formation Lithology IADC Type Guide
Extremely soft Clay, mudstone, marl M123 M316,M319,M416,M419,M519
Soft Marl, mudstone, shale M222
M223		 M416,M516,M519
Medium Shale, limestone and sandstone M322
M323
M333		 M513,M516,M613,M616
Hard medium Sandstone, gravel, dolomite, anhydrite M423
M432
M433		 M410,M510,M513,M516,M610
M613,M616,M713,M716,M813

3-1/4" ~ 17-1/2" D Series PDC Bit Guide Line
Formation Lithology IADC Type Guide
Extremely soft Clay, mudstone, marl M/S123 D316,D319,D416,D419,D519
Soft Marl, mudstone, shale M/S222
M/S223		 D416,D516,D519
Medium Shale, limestone and sandstone M/S322
M/S323
M/S333		 D513,D516,D613,D616
Hard medium Sandstone, gravel, dolomite, anhydrite M/S423
M/S432
M/S433		 D410,D510,D513,D516,D610
D613,D616,D713,D716,D813

Hybrid Bit General Information
Drill Diameter Bit Series Code Cone Qty. Blade Qty. PDC Cutter Code
8-3/8”～26” H:PDC-cone hybrid bit
HD:Directional hybrid bit		 2~4 3~8 ∮19 ~19.05mm
∮16 ~15.875mm
∮13 ~13.44mm

8-3/8" ~ 26" H Series Hybrid Bit Guide Line
Type Size Formation / Technique
H2413
H2416		 8-3/8”,8-1/2”,
8-3/4”,9-1/2”		 Hard strata, abrasive strata, heterogeneous formations (such as gravel strata), soft hard interlacing and other complex hard drilling strata
H3316
H3319		 12-1/4”,13-1/8”,
13-3/8”,16”,17-1/2”		 Hard strata, abrasive strata,Multiple layers of soft and hard frequent transformation strata and giant boulder strata
H4416
H4419		 22”,26” Hard strata,Complex interlaced strata,Adapt to small torque and low torsional vibration drilling

8-3/8" ~ 17-1/2" HD Series Hybrid Bit Guide Line
Type Size Formation / Technique
H2413
H2416		 8-3/8”,8-1/2”,
8-3/4”,9-1/2”		 Directional drilling in soft- hard formations, ,extended reach wells ,horizontal wells, shale gas horizontal wells, abrasive formations, heterogeneous formations (such as gravel beds), interbeds, multi-layer soft and hard transformation frequently formations.
H3316
H3319		 12-1/4”,13-1/8”,
13-3/8”,16”,17-1/2”

Engineering PDC Bit Guide Line
Drill Diameter Bit Series Code Blade Qty. Main Cutter Code
3-7/8" ~ 12-1/4" ES STEEL BODY PDC engineering bits
EM Matrix PDC engineering bits
EP Conical tooth
PDC engineering bits		 1~9 ∮25 ~25.40mm
∮19 ~19.05mm
∮16 ~15.875mm
∮13 ~13.44mm
∮10 ~10.00mm
∮8 ~8.00mm
