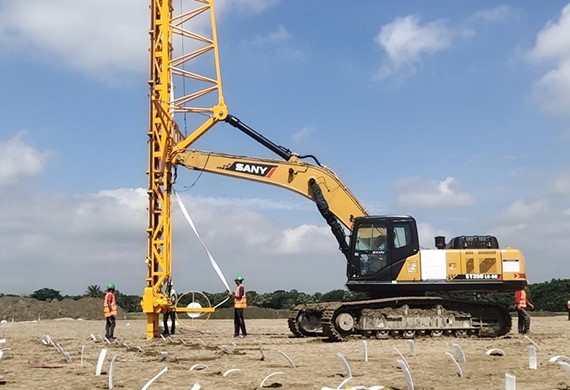

CM458 Internal Combustion Foundation Drill Rig Crawler Mounted
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | Internal Combustion Foundation Drill Rig,Foundation Drill Rig Crawler Mounted,Internal Combustion crawler drill rig |
||
|---|---|---|---|
Product Description
Product Description
Product Features
CM458 internal combustion (CM458D Electric) crawler mounted versatile anchor rig adopts diesel engine and hydraulic oil pump assemblies to provide power, allowing rigs to finish moving, rotating, propelling and lifting, as well as angle positioning. During drilling,only the percussive hammer consumes compressed air.
CM458 is applicable to all kinds of anchor supporting operation. In addition and rock blasting drilling, the rig is also applicable to the grouting hole drilling for cofferdam, dam,base reinforcement,open pit mining drilling. Newly designed hydraulic clamp is a very useful device making operation easier.
| Model | CM458 |
| Borehole diameter | 105-305mm |
| Borehole depth | 200m |
| Applicable rock hardness | f=6-20 |
| Working air pressure | 1.2-3.5MPa |
| Air consumption | 16-40m/min |
| Feeding stroke | 3300mm |
| Rod-changing length | 3m |
| Ground clearance | 254mm |
| Rotation rate | 0-50rpm |
| Rotation torque | 5400Nm |
| Travle speed | 2Km/h |
| Grade ability | 24° |
| Power | Yuchai 70KW/Cummins 74KW |
| Electric motor 45KW | |
| Dust collector (optional) | Hydraulic dry dust collector |
| Wet dust collector | |
| Dimension (LxWxH) | 6900mm×2200mm×2200mm |
| Weight | 6200kg |
