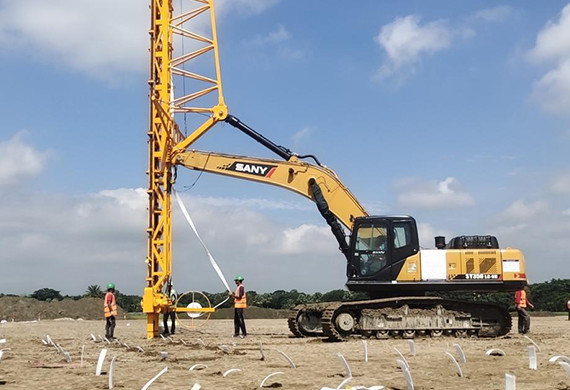

200m Deep Foundation Drill Rig Anchor Supporting Rock Drilling Rig

  • 200m Deep Foundation Drill Rig Anchor Supporting Rock Drilling Rig
Place of Origin CHINA
Brand Name OHANG TECH
Minimum Order Quantity 1
Packaging Details Sea Freight Packing
Delivery Time 30-50 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Foundation Drill Rig
High Light

200m deep foundation drill rig

,

Foundation Drill Rig Anchor Supporting

,

200m Deep Rock Drilling Rig
Leave a Message
Product Description

Foundation Drill Rig

Product Features

CM458 internal combustion (CM458D Electric) crawler mounted versatile anchor rig adopts diesel engine and hydraulic oil pump assemblies to provide power, allowing rigs to finish moving, rotating, propelling and lifting, as well as angle positioning. During drilling,only the percussive hammer consumes compressed air.

CM458 is applicable to all kinds of anchor supporting operation. In addition and rock blasting drilling, the rig is also applicable to the grouting hole drilling for cofferdam, dam,base reinforcement,open pit mining drilling. Newly designed hydraulic clamp is a very useful device making operation easier.


Model CM458
Borehole diameter 105-305mm
Borehole depth 200m
Applicable rock hardness f=6-20
Working air pressure 1.2-3.5MPa
Air consumption 16-40m/min
Feeding stroke 3300mm
Rod-changing length 3m
Ground clearance 254mm
Rotation rate 0-50rpm
Rotation torque 5400Nm
Travle speed 2Km/h
Grade ability 24°
Power Yuchai 70KW/Cummins 74KW
Electric motor 45KW
Dust collector (optional) Hydraulic dry dust collector
Wet dust collector
Dimension (LxWxH) 6900mm×2200mm×2200mm
Weight 6200kg
