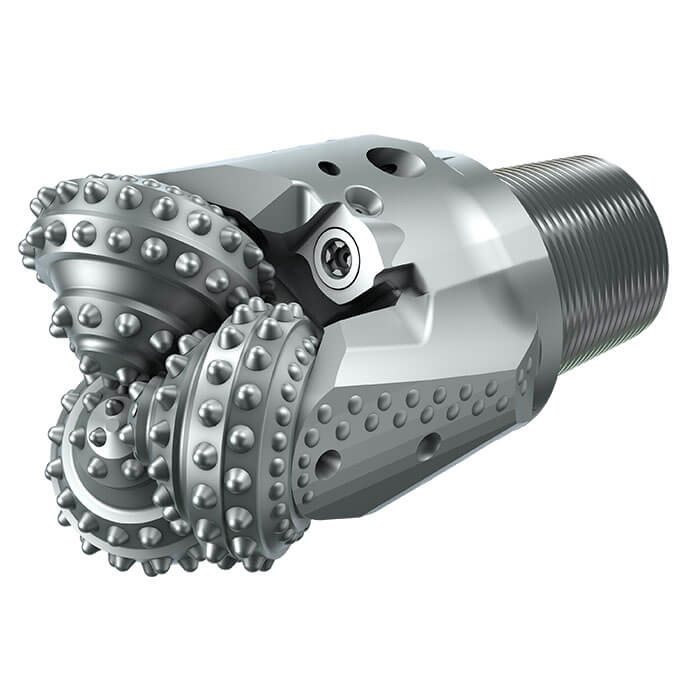

Inserted Tooth TriCone Oil Drill Bit Roller Bearing Rubber Sealing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Roller Bearing-Rubber Sealing-Inserted Teeth Tri-Cone Bits | Seal | Metal / Rubber |
|---|---|---|---|
| For | Drill / HDD | ||
| High Light | Inserted Tooth TriCone Oil Drill Bit,TriCone Oil Drill Bit Roller Bearing,Rubber Sealing tricone drill bit |
||
Product Description
Roller Bearing-Rubber Sealing-Inserted Teeth Tri-Cone Bits Basic Info.
Transport Package
Paper Box
Origin
Hebei
HS Code
8207191000
Production Capacity
50000
Product Description
Product Features
SRM (Slide Bearing-Rubber Sealing Milled Teeth) bits can load a higher WOB in normal RPM condition. It applies in different formation from very soft to very hard matched with different cutting structure.
Product Features:
-Slide bearing is applied
-Hard alloy is welded on the surface of tooth to increase the wearing resistance performance
-Cone bearing is silver coated which provides more loading ability and anti-seizure ability
-O sealing ring is made of HNBR which is more corrosion and high temperature resistant; larger sealing ring cross section increases sealing adaptability
-Steel ball locked cone provides more security and is applicable to high speed rotation.
-250 ºC high temperature and anti-corrosion lubricant is applied which the high temperature resistance performance of bit sealing lubricating system.
-Optimized milled teeth surface weld improves the anti-corrosion performance of drill bit
-Optimized milled teeth quantity and teeth arrangement structure give full play to the cutting ability and cutting speed of drill bits.
SRM (Slide Bearing-Rubber Sealing Milled Teeth) bits can load a higher WOB in normal RPM condition. It applies in different formation from very soft to very hard matched with different cutting structure.
Product Features:
-Slide bearing is applied
-Hard alloy is welded on the surface of tooth to increase the wearing resistance performance
-Cone bearing is silver coated which provides more loading ability and anti-seizure ability
-O sealing ring is made of HNBR which is more corrosion and high temperature resistant; larger sealing ring cross section increases sealing adaptability
-Steel ball locked cone provides more security and is applicable to high speed rotation.
-250 ºC high temperature and anti-corrosion lubricant is applied which the high temperature resistance performance of bit sealing lubricating system.
-Optimized milled teeth surface weld improves the anti-corrosion performance of drill bit
-Optimized milled teeth quantity and teeth arrangement structure give full play to the cutting ability and cutting speed of drill bits.
| Tricone Bit Specification | |||||||||||||
| Conventional Inserted Teeth Tri-Cone Bits | |||||||||||||
| IADC Code | Size Available | Protodrakonov Scale of Hardness | Recommend WOB KN/mm |
Recommend RPM | |||||||||
| 3-7/8" | 4-3/8" | 4-5/8" | 5-1/4" | 6" | 7-1/2" | 8-1/2" | 8-3/4" | 9-1/2" | 12-1/2" | ||||
| 98.4mm | 111.1mm | 117.5mm | 133.4mm | 152.4mm | 190.5mm | 215.9mm | 222.2mm | 241.3mm | 311.1mm | ||||
| 437 | √ | √ | f=5~7 | 0.35~0.9 | 60~150 | ||||||||
| 517 | √ | √ | √ | √ | f=6~8 | 0.4~0.95 | 60~150 | ||||||
| 537 | √ | √ | f=8~10 | 0.75~0.85 | 60~150 | ||||||||
| 637 | f=10~12 | 0.75~1.20 | 40~70 | ||||||||||
| 2-3/8REG | 2-7/8REG | 3-1/2REG | 4-1/2REG | 6-5/8REG | "√" means regularly available products; other types or sizes shall be custom made accordingly. | ||||||||
| Thread Connection Available | |||||||||||||
| Conventional Milled Teeth Tri-Cone Bits | |||||||||||||
| IADC Code | Size Available | Protodrakonov Scale of Hardness | Recommend WOB KN/mm |
Recommend RPM | |||||||||
| 3-7/8" | 4-3/8" | 4-5/8" | 5-1/4" | 6" | 7-1/2" | 8-1/2" | 8-3/4" | 9-1/2" | 12-1/2" | ||||
| 98.4mm | 111.1mm | 117.5mm | 133.4mm | 152.4mm | 190.5mm | 215.9mm | 222.2mm | 241.3mm | 311.1mm | ||||
| 125 | f=1~3 | 0.3~0.7 | 80~200 | ||||||||||
| 131 | √ | √ | √ | √ | √ | f=1~3 | 0.3~0.7 | 80~200 | |||||
| 135 | √ | √ | √ | √ | √ | f=3~5 | 0.4~0.8 | 70~180 | |||||
| 145 | √ | √ | √ | √ | √ | f=4~6 | 0.75~0.85 | 60~160 | |||||
| 2-3/8REG | 2-7/8REG | 3-1/2REG | 4-1/2REG | 6-5/8REG | "√" means regularly available products; other types or sizes shall be custom made accordingly. | ||||||||
| Thread Connection Available | |||||||||||||
